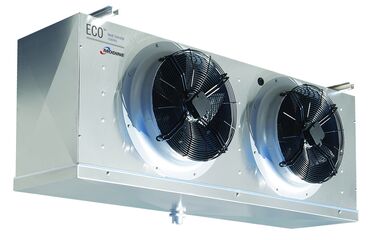

A series of ECO CTE-W industrial glycol air coolers with one-way air supply, dedicated to use in large refrigerator for fresh or frozen products storage. 69 models in the nominal power range between 3.88 – 109.14 kW.

Cubic celling coolers are equipped with AC fans with diameter 500 and 630 mm. Maximum operating temperature: + 70°C.

Commercial glycol air coolers CTE-W designed for food storage (fresh fruits, and vegetables) where high humidity level is required. The coolers are equipped with high-efficiency block fin tubes made of profiled aluminum fins and smooth copper tubes. Models can be equipped with non-standard fin blocks, defrost and various fan motor options on request.

CTE-W characteristic:

  • nominal capacity range:
    • from 3,88 to 109,14 kW (ethylene glycol 35%, tj,in=-8°C, tj,out=-4°C, ta=0°C)
  • air flow: from 6 310 to 63 120 m3/h
  • block fin tubes:
    • fin spacing 4; 6; 8,5 mm
    • smooth copper tubes ø1/2”
    • parameters of block: 37,5 х 32,5 mm
  • fans:
    • 1 to 4 pcs with diameter 500 or 630 mm
    • power supply: 400B/3/50Hz
      • temperature range from -40 to +70 °C (ø500 mm)
      • temperature range from -40 to +60 °C (ø630 mm)
    • additional EC-fans

CTE-W advantages:

  • durable body made of polished aluminium alloy
  • high corrosian resistant
  • high-efficiency block fin tubes
  • thermal protection
  • heat exchanger with a large exchange surface
  • fan motors and heaters connected in separate junction boxes (protection class IP 54)
  • electrical defrost (ED version)
  • special versions on request

ECO CTE-W glycol air coolers applications:

  • high storage temperature (≥ +2°C):
    • fin spacing 4 mm
  • medium storage temperature (≥ - 15°C):
    • increased fin spacing 6 mm
    • electrical defrost recommended
  • low storage temperature (≥ - 35°C):
    • increased fin spacing 8,5 mm
    • electrical defrost as standard
