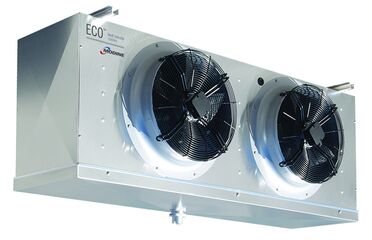

A series of ECO GCE-W glycol air coolers with one-way air supply, dedicated to use in small refrigerator compartments and cooling furniture. Their construction ensures the floor space optimal use. 105 models in the nominal power range between 0.34 – 17.89 kW.

Cubic celling coolers are equipped with AC axial fans with diameter 250, 315, 350 mm. Maximum operating temperature: + 60°C (optional EC fans).

The coolers are equipped with high-efficiency block fin tubes made of profiled aluminum fins and smooth copper tubes. Models can be equipped with non-standard fin blocks, defrost and various fan motor options on request.

GCE-W characteristic:

  • nominal capacity range:
    • from 0,34 to 17,89 kW (ethylene glycol 35%, tj,in=-8°C, tj,out=-4°C, ta=0°C)
  • air flow: from 708 to 12 500 m3/h
  • block fin tubes:
    • fin spacing 4; 6; 8 mm
    • smooth copper tubes ø3/8”
    • parameters of block: 37,5 х 32,5 mm
  • fans:
    • 1 to 5 pcs with diameter 250; 315 and 350 mm
    • power supply: 230B/1/50Hz
      • temperature range from -40 to +40 °C (ø250 mm)
      • temperature range from -40 to +45 °C (ø315 mm)
      • temperature range from -40 to +50 °C (ø350 mm)
    • additional EC-fans

GCE-W advantages:

  • durable body made of polished aluminium alloy
  • new mounting brackets
  • easier to maintain cleanliness in the chambers – there is no gap between the radiator body and the chamber ceiling
  • high-efficiency block fin tubes
  • thermal protection
  • fan motors and heaters connected in separate junction boxes (protection class IP 54)
  • build-in internal drip tray
  • EC fans - an option for whole range GCE air coolers
  • parameters – 37,5 х 32,5 with pipe 3/8”
  • stainless steel electric heaters screwed to the side plate “One Side Stop System” – prevent them from moving.
  • built-in cable – “Plug in” system for fans with a diameter 250mm
  • special versions on request

ECO GCE-W glycol air coolers applications:

  • high storage temperature (≥ +12°C):
    • fin spacing 4 mm
  • medium storage temperature (≥ - 15°C):
    • increased fin spacing 6 mm
    • electrical defrost recomended
  • low storage temperature (≥ - 35°C):
    • increased fin spacing 8 mm
    • electrical defrost recomended
