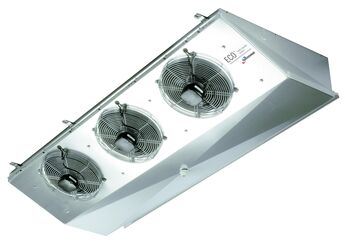

A series of ECO GSE-W glycol air coolers with one-way air supply, dedicated to use in small refrigerator with limited height for fresh or frozen products storage. 8 models in the nominal power range between 0.75 – 7.33 kW.

Flat celling coolers are equipped with AC fans with diameter 315 mm. IP 44 protection. Maximum operating temperature: + 60°C (optional EC fans).

The whole glycol air coolers range GSE-W are equipped with high-efficiency block fin tubes made of profiled aluminum fins and smooth copper tubes. Models can be equipped with non-standard fin blocks, defrost and various fan motor options on request.

GSE-W characteristic:

  • nominal capacity range:
    • from 0,75 to 7,33 kW (ethylene glycol 35%, tj,in=-8°C, tj,out=-4°C, ta=0°C)
  • air flow: from 1 000 to 4 400 m3/h
  • block fin tubes:
    • fin spacing 4;7 mm
    • smooth copper tubes ø3/8”
    • parameters of block: 37,5 х 32,5 mm
  • fans:
    • 1 to 4 pcs with diameter 315 mm
    • power supply: 230B/1/50Hz
    • temperature range from -40 to +35 °C
    • additional EC-fans

GSE-W advantages:

  • durable body made of polished aluminium alloy
  • high corrosian resistant
  • high-efficiency block fin tubes
  • resist refrigerant consumption
  • thermal protection
  • fan motors and heaters connected in separate junction boxes (protection class IP 54)
  • special versions on request

ECO GSE-W glycol air coolers applications:

  • high storage temperature (≥ +2°C):
    • fin spacing 4 mm
  • low storage temperature (≥ - 25°C):
    • increased fin spacing 7 mm
    • electrical defrost recomended
