The range of Danfoss control valves incudes: evaporating pressure regulators, suction pressure regulators, liquid tank pressure regulators, liquid tank pressure regulators, hot gas regulators and manual regulating valves. Valves are available  in a wide range of performance and operation, they are adapted to work with refrigerants from the HCFC, HFC and HC groups. The adjustment range is from 0 to 20 bar, depends on series. Models in accordance with ATEX zone 2 are available.

[read more]

Parameters

All

All

All

All

TUH

TUH

Danfoss
Application:
Performance regulator
Refrigerant:
R22, R134a, R404A, R407C, R410A, R513A
Inlet connection type:
Soldered
Maximum working pressure [bar]:
34 - 46
TGHE

TGHE

Danfoss
Application:
Performance regulator
Refrigerant:
R134a, R410A
Inlet connection type:
Soldered
Maximum working pressure [bar]:
49

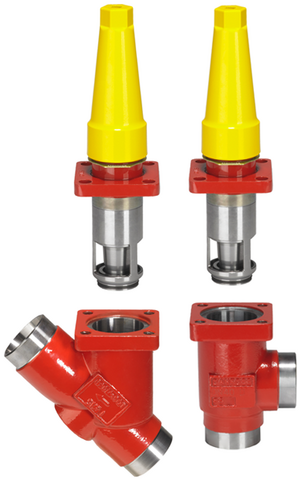

REG

REG

Danfoss
Application:
Manual control valve
Refrigerant:
R22, R134a, R290, R32, R404A, R407A, R407C, R407F, R410A, R448A, R449A, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R513A, R515B, R600a, R717 (ammonia), R744 (CO₂), R1234yf
Inlet connection type:
Welded, Thread
Maximum working pressure [bar]:
52

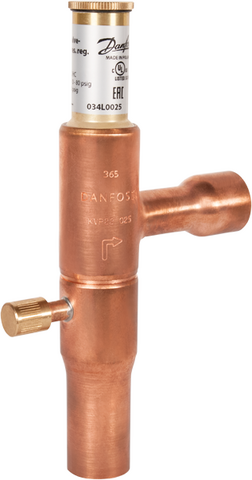

KVP

KVP

Danfoss
Application:
Evaporating pressure regulator
Refrigerant:
R22, R134a, R290, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R454A, R454C, R455A, R513A, R515B, R600a, R1234yf
Inlet connection type:
Flare, Soldered
Maximum working pressure [bar]:
18

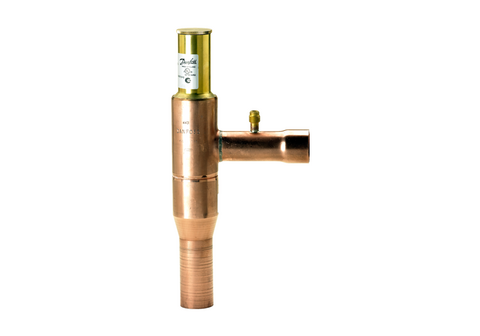

KVL

KVL

Danfoss
Application:
Suction pressure regulator
Refrigerant:
R22, R134a, R290, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R454A, R454C, R455A, R513A, R515B, R600a, R1234yf
Inlet connection type:
Flare, Soldered
Maximum working pressure [bar]:
18
KVC

KVC

Danfoss
Application:
Hot gas bleed regulator
Refrigerant:
R22, R134a, R290, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R454A, R454C, R455A, R513A, R515B, R600a, R1234yf
Inlet connection type:
Flare, Soldered
Maximum working pressure [bar]:
28
KVD

KVD

Danfoss
Application:
Liquid tank pressure regulator
Refrigerant:
R22, R134a, R290, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R454A, R454C, R455A, R513A, R515B, R600a, R1234yf
Inlet connection type:
Flare, Soldered
Maximum working pressure [bar]:
28

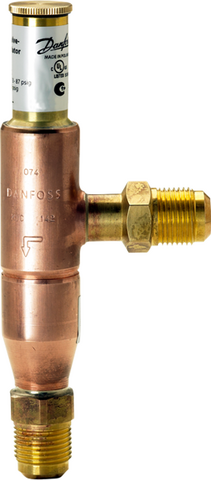

CPCE

CPCE

Danfoss
Application:
Pressure regulator
Refrigerant:
R22, R134a, R290, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R454A, R454C, R455A, R513A, R515B, R600a
Inlet connection type:
Flare, Soldered
Maximum working pressure [bar]:
28

The range of Danfoss control valves incudes: evaporating pressure regulators, suction pressure regulators, liquid tank pressure regulators, liquid tank pressure regulators, hot gas regulators and manual regulating valves. Valves are available  in a wide range of performance and operation, they are adapted to work with refrigerants from the HCFC, HFC and HC groups. The adjustment range is from 0 to 20 bar, depends on series. Models in accordance with ATEX zone 2 are available.

The Danfoss control valves applications:

  • Traditional refrigeration systems
  • Air- conditioning devices
  • Cold rooms
  • Refrigerated showcases
  • Air dryers
  • Mobile refrigeration systems
